220HP Chinese Swamp Bull Dozer Bulldozer Shantui SD22

FOB Reference Price:Get Latest Price
$100,000.00 - $110,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
SD22
Dozing Capacity:
6.4CBM
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Machine Weight:
23.44 Ton
Dimension(Long * Breadth * High):
5874*3725*3360 mm
Warranty:
1 year
Applicable Industries:
Construction works
Place of Origin:
Shandong, China
Brand Name:
SHANTUI
Condition:
New
Moving Type:
Crawler Bulldozer
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts, Engineers available to service machinery overseas, No after-sales service
Hydraulic Cylinder Brand:
Other
Hydraulic Pump Brand:
Other
Hydraulic Valve Brand:
Other
Engine Brand:
Chongfa
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details

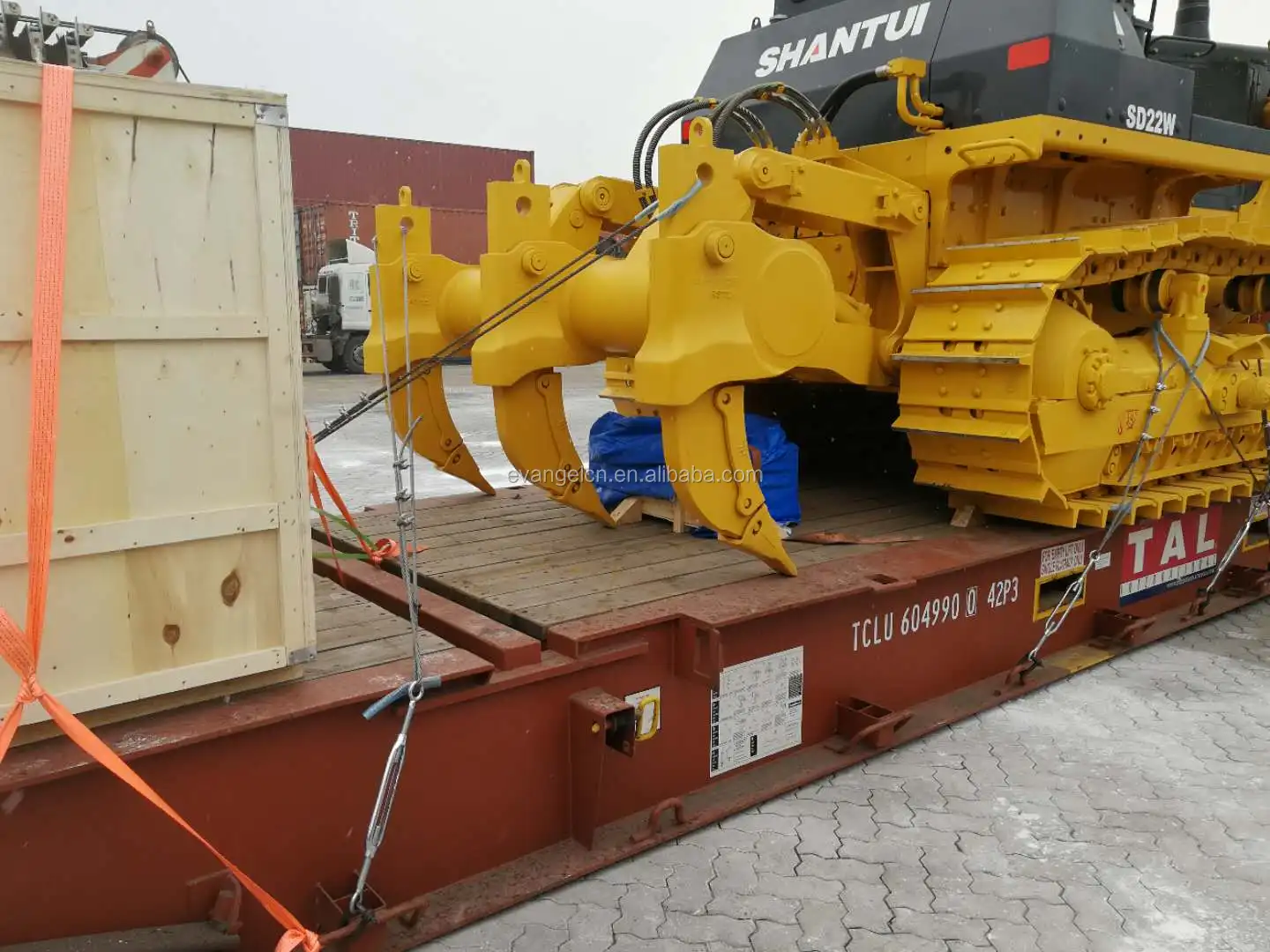

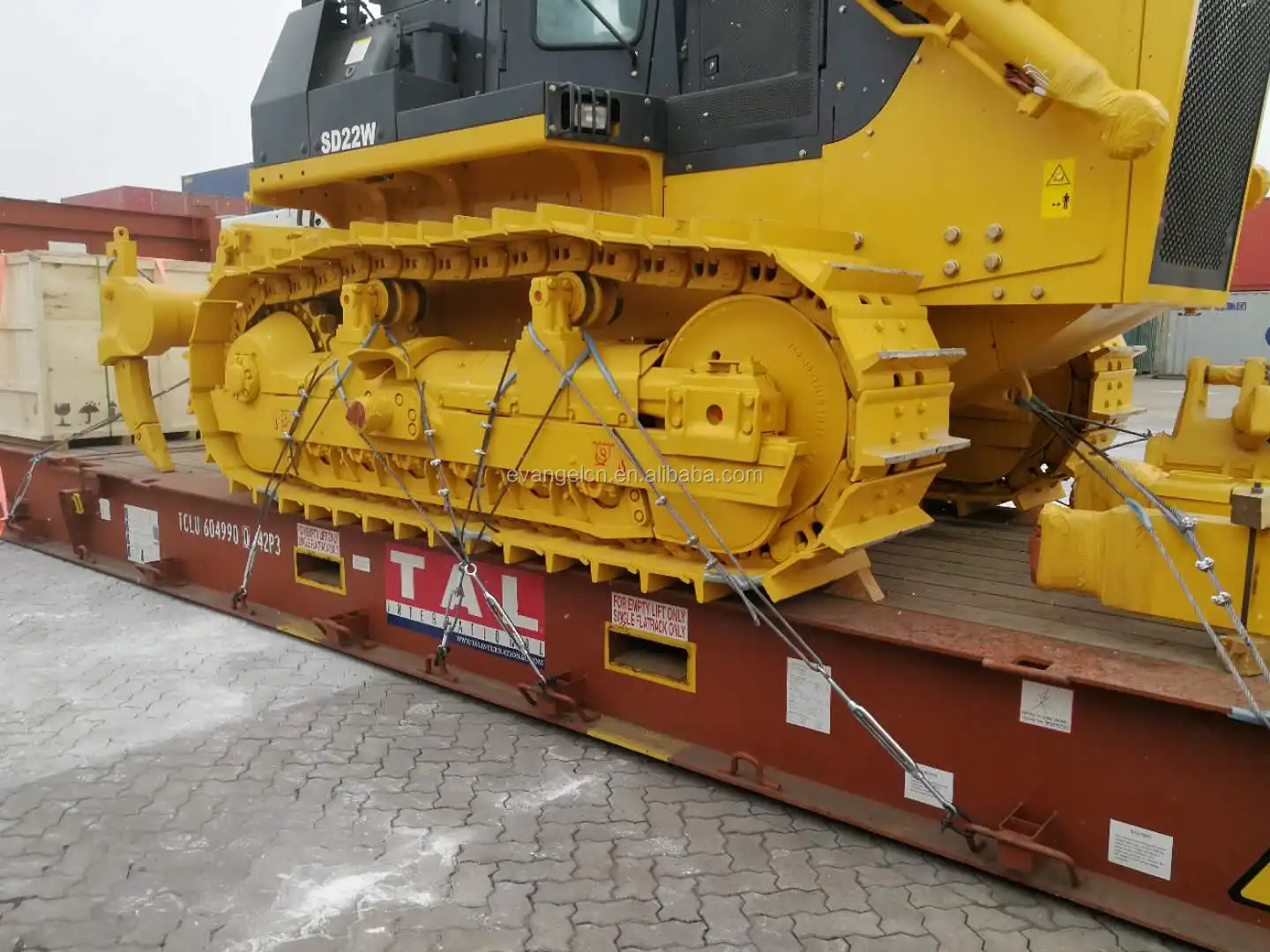

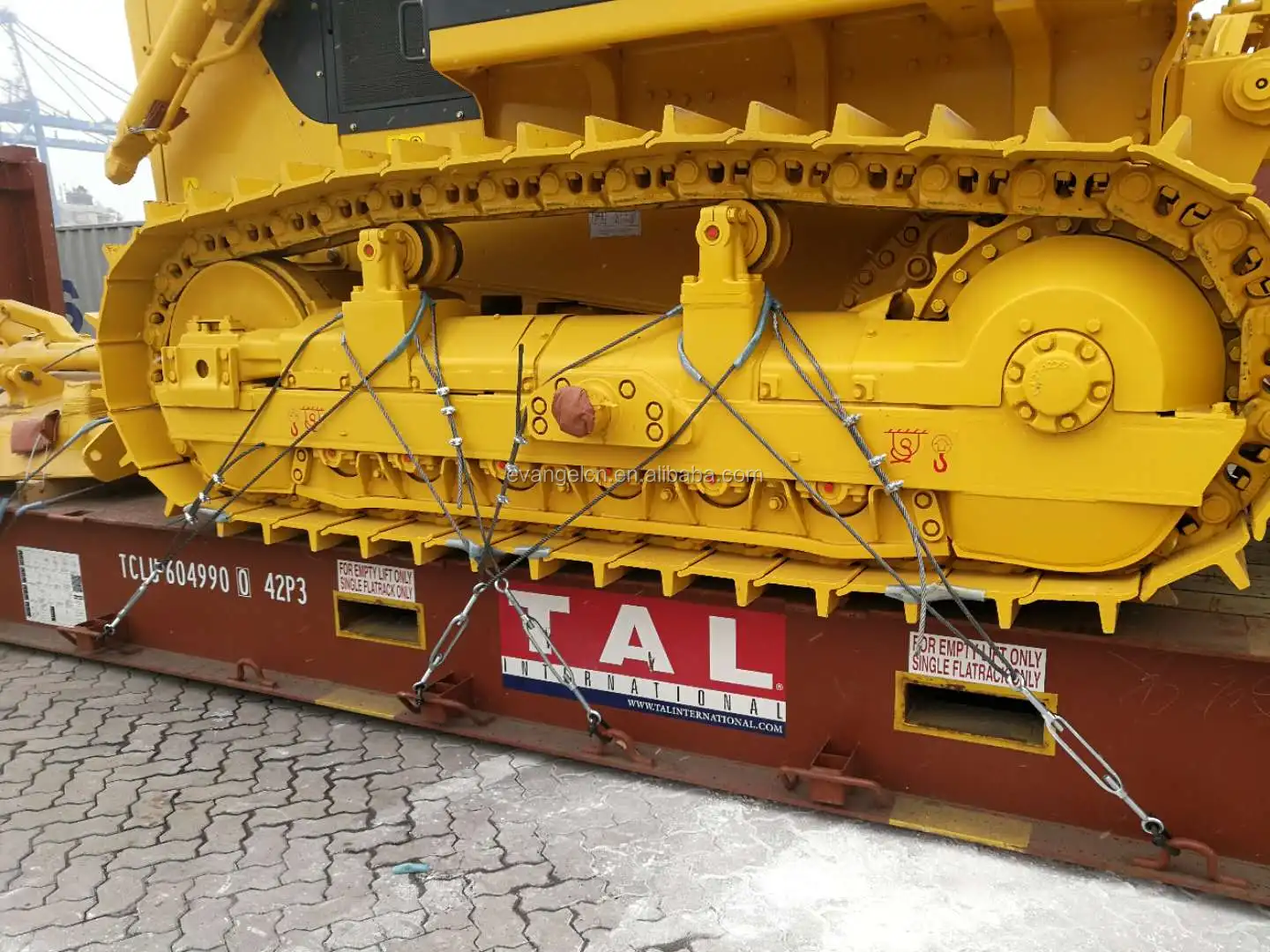

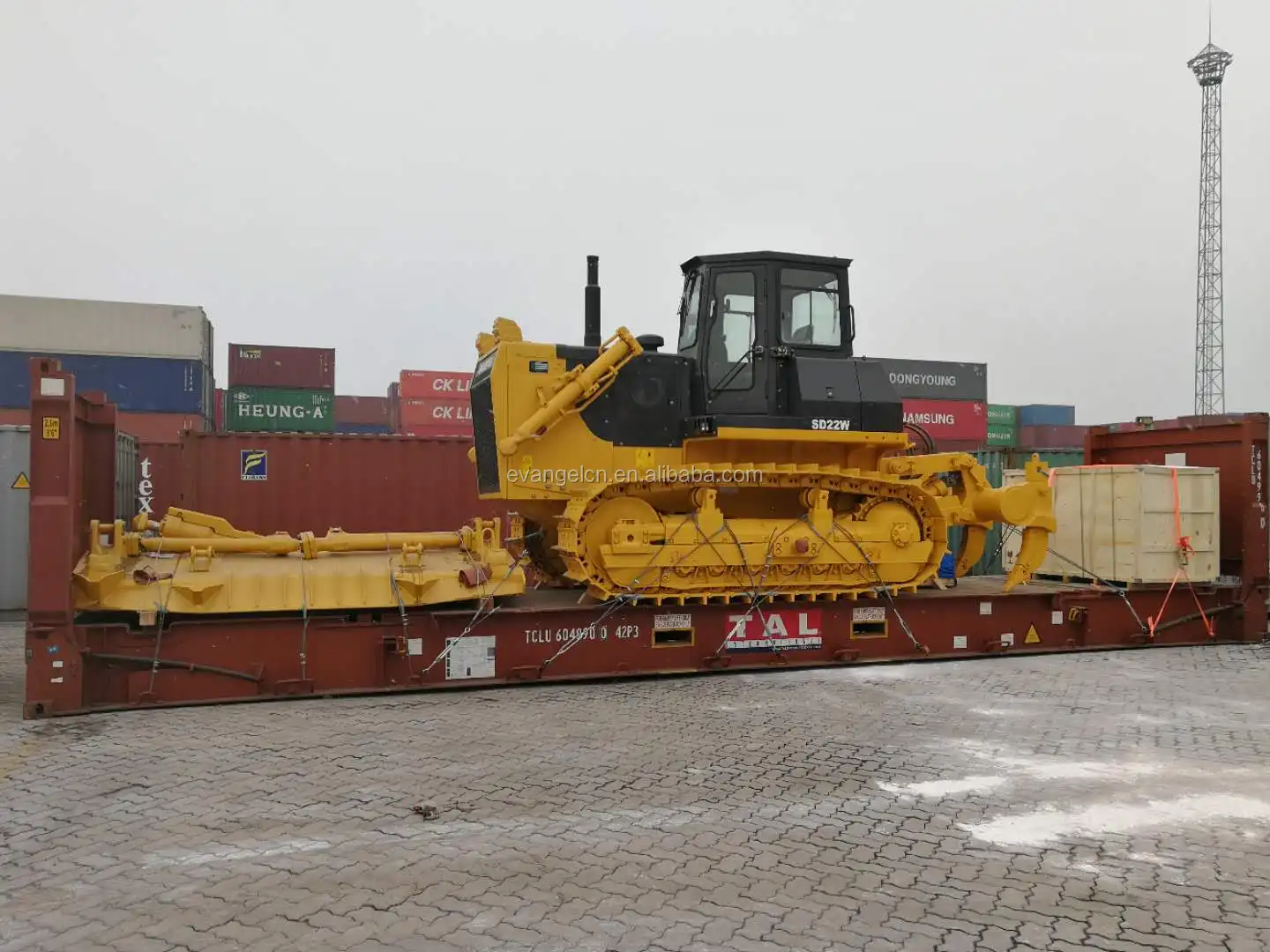

1 set for 40HQ container or RORO shipment or Bulk break shipment.
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated








220HP Chinese Swamp Bull Dozer Bulldozer Shantui SD22



Product Description



 SD22 series bulldozer adopts Shantui’s patented technologies, including central lubrication, central pressure measurement, and automatic track tensioning technologies, and won the sole national golden quality award in China’s bulldozer industry. With multiple working devices and cabs, this product can meet the operation demands for diversified working conditions and is an ideal high-efficiency machine for earth-moving operations and bulk material handling.



1. Chongfa NT855-C280S10 engine features strong power and high efficiency and energy-saving.

2.  The high reliability power shift transmission, the stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission efficiency.

3.  The engine can run normally and reliably under all load conditions and all hot environments required by the user, without overheating.

4. It can realize the automatic diagnosis and whole-process monitoring of the malfunctions. The integrally injection molded instrument panel integrates the A/C, electric devices, and instruments, featuring beautiful appearance and high grade.

5. The full box-type main frame with application of high performance materials and high strength castings features high carrying capacity against impact load and bendingmoment and the high quality welds guarantee the life cycle of the main frame.

6. The semi-rigid suspension traveling system increases the ground area of tracks and improves the traction force of vehicle.

7. The ergonomically designed driver seat and armrests can be adjusted easily in vertical and longitudinal directions. The gearshift, steering, and accelerator controls are arranged on the left side with the adoption of flexible shaft structure. The working device controls are arranged on the right side with adoption of servo control system to achieve lighter and more flexible operations and relieve the operating fatigue.

8. The standard straight tilting blade features powerful cutting force to handle diversified severe working environments and the large single-shank ripper of adjustable penetrating angle can be used for the ripping of clay and frozen earth as well as the stripping of hard working faces, such as gravel and hardened salt mine.

Length × width × height (mm) (excluding ripper)5495×3725×3745Operating weight (t) (excluding ripper)23.4
Engine modelWD12G240E206/NT855-C280S10Net power/rated speed (kW/rpm)162/1800
Ground pressure(Mpa)0.077Blade typeStraight tilting blade   Angle blade     U blade    Semi-U blade
Blade capacity(m3) 6.4 for straight tilting blade   4.7 for angle blade    7.5 for U blade    7.0 for Semi-U blade
